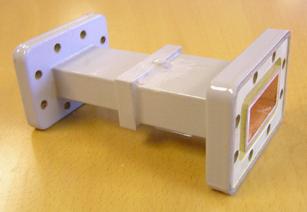

WG-transition

ARTA offers a wide range of adaptors. A selection of these are listed below. If you need an adaptor that is not listed in the table below, please do not hesitate to contact us. Please use the code key to complete the ordering code by inserting the required flange instead for "YYR".

Available Material (Ma) Al Cu1
Available Standar Flanges PDR PBR UER
Available Flanges * UBR CBR




Code Frequency (GhZ) VSWR Loss (dB) Length (mm)
TR-yyR40-yyR48-100-Cu1-A 3580 4200 1025 0.10 100
TR-yyR70-yyR48-100-Cu1-A 7125 8500 1025 0.10 100
TR-yyR84-yyR100-100-Cu1-A 9400 10000 1025 0.10 100
TR-yyR100-yyR120-100-Cu1-A 10700 11700 1.03 0.10 100
TR-yyR120-yyR140-100-Cu1-A 12750 13250 1.03 0.10 100
